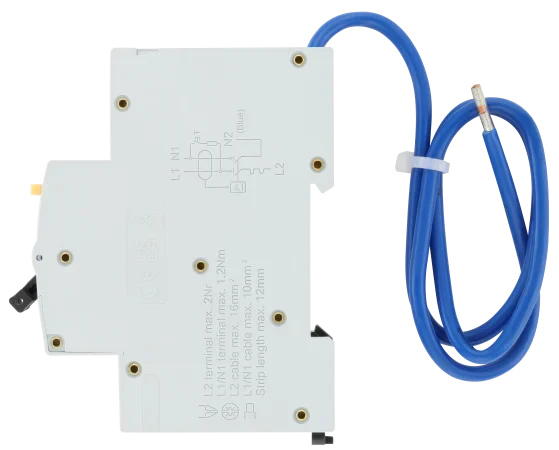

BG CUCRB40DPA 40A B Curve Type A Double Pole Bidirectional RCBO

BG CUCRB40DPA 40A B Curve Type A Double Pole Bidirectional RCBO

The BG range of B curve Type A 30mA Compact Double Pole RCBO devices offer superior protection against short circuit, overload and earth leakage faults with a 6kA breaking capacity, 5-10 times the full load tripping current and can be fitted into any BG range of consumer unit or enclosure and with being the same size as an MCB offers additional wiring space within the consumer unit, ideal where isolation of both Live and Neutral poles is required such as PV and EV application and offers protection against short circuit, overload and earth leakage in both flow directions

Features:

  • Bidirectional
  • -25°C to + 40 operating temperature
  • B curve
  • Type A
  • 2 Pole
  • Single Module
  • 6kA breaking capacity
  • Manual test button
  • Integrated neutral lead
  • Can be used in BG consumer units and enclosures

Technical Specifications:

  • General Colour: Light Grey
  • Rated Sensitivity (mA): 30mA
  • RCD Mechanism Type: Electro/Mechanical
  • Trip Speed (mS): <0.1s
  • Operating Voltage (V): 230
  • Current Rating (A); 40
  • Operating Temperature (C); -25°C to +40°C
  • Height (mm): 90
  • Width (mm) : 18
  • Depth (mm): 77
