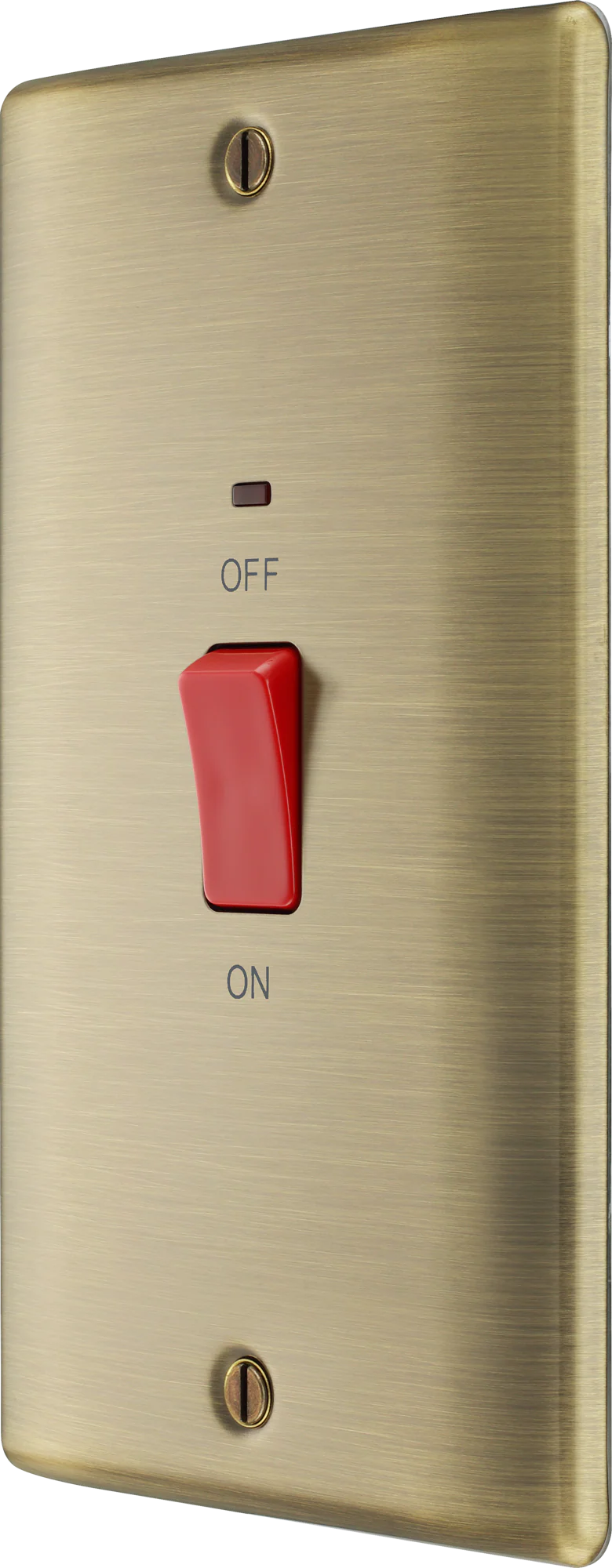

BG NAB72 Nexus Metal Antique Brass 45A, double pole, large plate, with indicator

BG NAB72 Nexus Metal Antique Brass 45A, double pole, large plate, with indicator

  • 45A Rated
  • Easy to install, supplied with fixing screws and installation instructions
  • Ideal for cookers and ovens
  • Double Pole switching for the peace of mind of a safer installation
  • Twin earth fitted as standard for high integrity circuits
  • Captive screws prevent screw loss
  • Flush power indicator
  • Sleek and slim premium metal with softly rounded edges
  • Moisture control gasket, prevents tarnishing from new plaster
  • Minimum mounting box depth 47mm
  • General Colour: Antique Brass
  • Captive Terminal Screws: Yes
  • Backed-out Terminal Screws: Yes
  • Minimum Box Depth (mm): 47
  • Terminal Capacity (mm²) : 1 x 16mm², 3 x 6.0mm², 4 x 4mm²
  • Fixing Screws Supplied: Yes
  • Terminals with Colour Coding Print: Yes
  • Number of Switches: 1
  • Screw Caps: No
  • Switch Style Type: Rocker
  • Switch Type (Ways & Poles): Double Pole
  • Switch Location Position : Wall
  • Fixing Centres (mm) : H-120.6
  • IP Rating : IP20
  • Switch State : On/Off
  • Height (mm) : 146
  • Width (mm) : 86
  • Depth (mm) : 29.3
$14.33
BG NAB72 Nexus Metal Antique Brass 45A, double pole, large plate, with indicator—
$14.33

Product Information

Shipping & Returns

Description

  • 45A Rated
  • Easy to install, supplied with fixing screws and installation instructions
  • Ideal for cookers and ovens
  • Double Pole switching for the peace of mind of a safer installation
  • Twin earth fitted as standard for high integrity circuits
  • Captive screws prevent screw loss
  • Flush power indicator
  • Sleek and slim premium metal with softly rounded edges
  • Moisture control gasket, prevents tarnishing from new plaster
  • Minimum mounting box depth 47mm
  • General Colour: Antique Brass
  • Captive Terminal Screws: Yes
  • Backed-out Terminal Screws: Yes
  • Minimum Box Depth (mm): 47
  • Terminal Capacity (mm²) : 1 x 16mm², 3 x 6.0mm², 4 x 4mm²
  • Fixing Screws Supplied: Yes
  • Terminals with Colour Coding Print: Yes
  • Number of Switches: 1
  • Screw Caps: No
  • Switch Style Type: Rocker
  • Switch Type (Ways & Poles): Double Pole
  • Switch Location Position : Wall
  • Fixing Centres (mm) : H-120.6
  • IP Rating : IP20
  • Switch State : On/Off
  • Height (mm) : 146
  • Width (mm) : 86
  • Depth (mm) : 29.3
