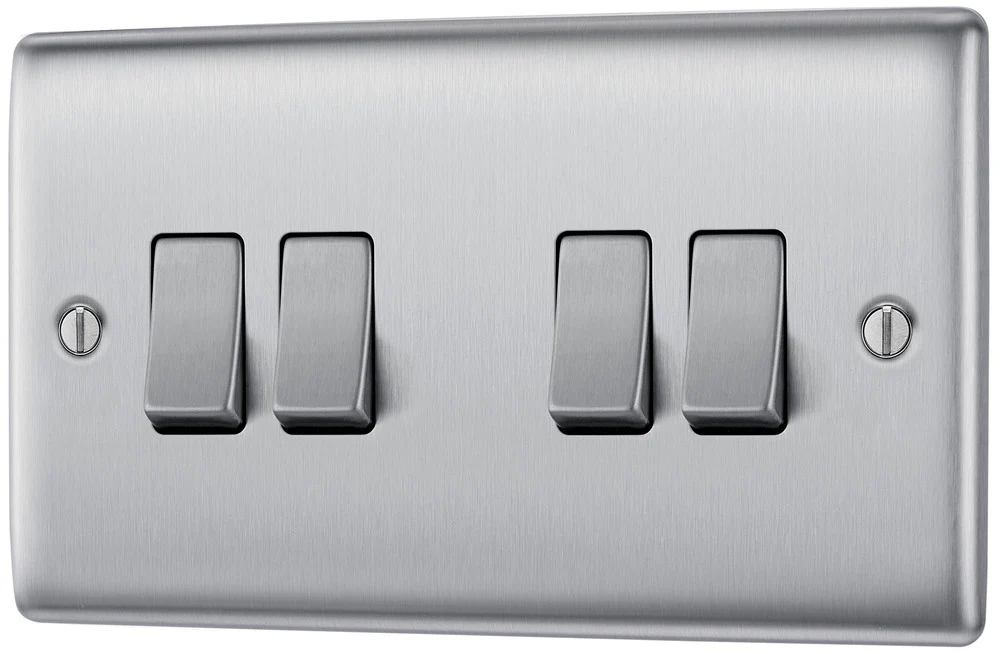

BG NBS44 Nexus Metal Brushed Steel Quadruple Switch, 10Ax 2 Way

Product Description

This brushed steel finish 10A quadruple light switch can operate 4 different lights, whilst the 2 way switching allows a second switch to be added to the circuit to operate the same light from another location (e.g. at the top and bottom of the stairs)
This switch has an anti-fingerprint lacquer and a sleek and slim profile, with softly rounded edges to add a touch of luxury to your decor.

Technical Details

Standard(s):	BS EN 60669-1
Contact Gap:	3.0mm minimum
Rating:	10 Amp, 250V~(10AX – no derating for inductive or fluorescent loads)
Terminal Capacity - L & N:	4 x 1.0mm ² 4 x 1.5mm ² 2 x 2.5mm ² 1 x 4.0mm ²
RoHS Directive:	No
WEEE Directive:	No
Mounting Box Depth (Min):	25mm
Fixing Centres:	120.6mm
Size:	146.5mm x 86mm x 21.2mm

More Details

• Easy to install, supplied with fixing screws and installation instructions

• 2 way switching allows for a second switch position in a circuit

• Captive, backed out terminal screws for fast installation and to prevent screw loss

• Sleek and slim premium metal with softly rounded edges

• Moisture control gasket, prevents tarnishing from new plaster

• No visible plastic around switches

• Minimum mounting box depth 25mm

• Anti-fingerprint lacquer reduces unsightly fingerprints
