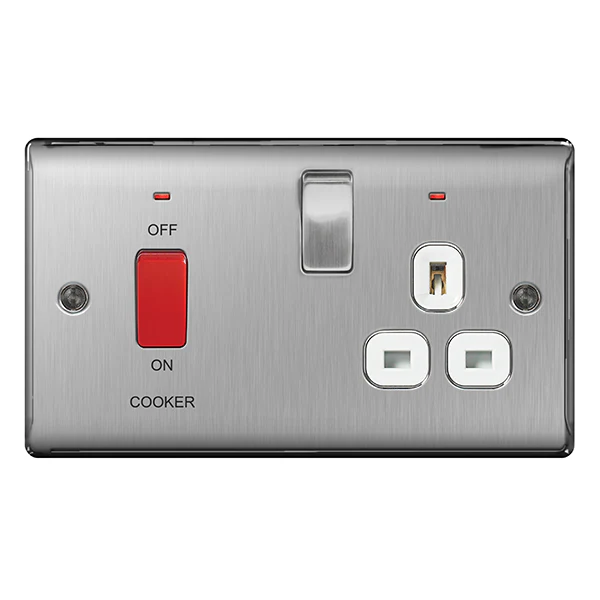

BG NBS70W Nexus Metal Brushed Steel 45A Cook. Control Unit w- Swi. 13A Power Skt. + Neon

Product Description

This 45A cooker control unit includes a 13A socket for an additional appliance outlet, and has flush LED indicators above the socket and switch.

This switch has a premium brushed steel finish with anti-fingerprint lacquer, a sleek and slim profile and softly rounded edges to add a touch of luxury to your decor.

Technical Details

Standard(s):	BS 4177
Contact Gap:	3.0mm minimum
Switch type:	Double pole
Rating:	45 Amp 250V~

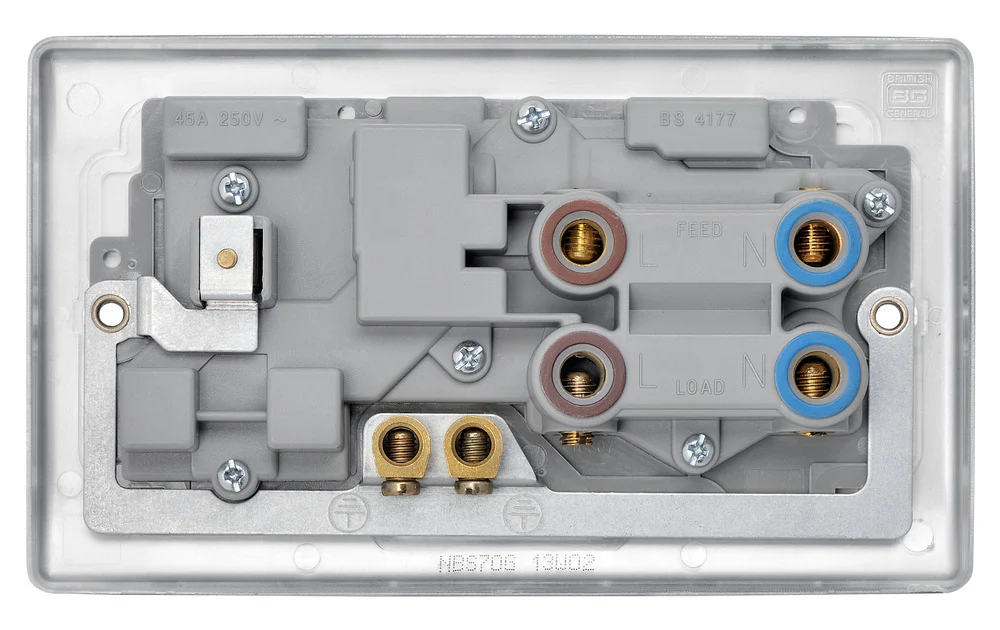

Terminal Capacity - L & N:	4 x 4.0mm ² 3 x 6.0mm ² 1 x 16.0mm ²
Terminal Capacity - Earth:	3 x 4.0mm ² 2 x 6.0mm ² 1 x 16.0mm ²
RoHS Directive:	No
WEEE Directive:	No
Mounting Box Depth (Min):	47mm
Fixing Centres:	120.6mm
Size:	146.5mm x 86mm x 31.8mm

More Details

• Easy to install, supplied with fixing screws and installation instructions

• Colour coded terminals for ease of identification

• 13A socket for additional appliance outlet

• Flush LED power Indicator above socket and switch

• Sleek and slim premium metal with softly rounded edges with no visible plastic around the switch and an anti-fingerprint lacquer

• Twin earth fitted as standard for high integrity circuits

• White socket insert

• Moisture control gasket, prevents tarnishing from new plaster

• Double Pole switching for the peace of mind of a safer installation

• Captive screws prevent screw loss
