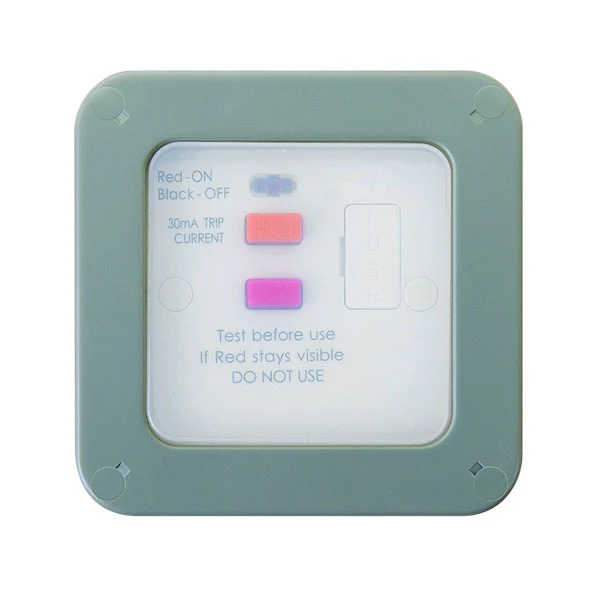

BG WP55RCD Weatherproof 13A Connection Unit with RCD

Product Description

Cuts off power safely & prevents electrocution in
event of a fault 30mA trip current & 40ms trip circuit operation Latching operation, socket returns to original state when power resumed.

Supplied in a robust, weatherproof encasement with multiple gland entry positions, the power indicator can be seen through the hinged see-through cover which acts as an enclosure for the socket.

Technical Details

Standard(s):	BS7288
Rating:	3,120 Watts Max, 13A 240V ~
Terminal Capacity:	3 x 2.5mm2, 2 x 4.0mm2 & 1 x 6.0mm2
RoHS Directive:	No
WEEE Directive:	No
IP rating:	IP66

Product Details

• Flexible membrane allows switching without
  opening unit
• Easy to install, supplied with fixing screws and installation instructions

• Ideal for spur circuits and hard wired power appliances

• Angled colour coded terminals provide easy access for quick installation

• Captive screws prevent screw loss

• 1 drill out entry 20/25mm in rear face

• Visible indication of power status through see-through cover

• Robust and high impact outdoor unit, for safe electricity supply outdoors

• Supplied with multiple knock-out mounting box , with 5 versatile entry options with an easy push out blank plug design and one cut out entry option on rear

• Flex outlet channel

• Twin earth fitted as standard for high integrity circuits

• Embossed with 'Fuse' on the fuse cover

• Power indicator is visible even when the cover is down
