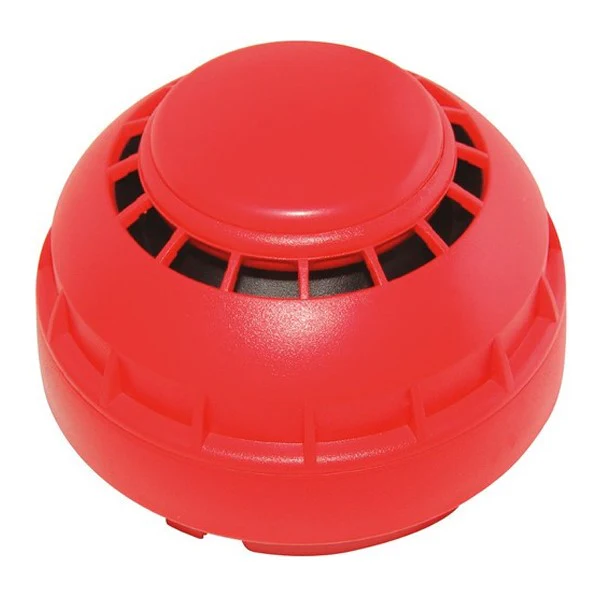

C-TEC 55000-018APO AlarmSense Open Area Sounder IP65
ONLY COMPATIBLE WITH THE ALARMSENSE RANGE (see here)
Ā
Product Details:
Ā
Supply wiring : 2-wire monitored, polarity insensitive.
Supply/operating voltage : 18-33VDC (sounders active); Less than 15VDC (sounders off).
Quiescent current : 100ĀµA @ 12VDC. (Max. surge current 200ĀµA).
Nominal SPL (Sound Pressure Level) : Up to 99dB(A) @ 1m. Note the tone frequency incorporated into this device is the Apollo Evacuate tone (840Hz for 0.5s and 546Hz for 0.5s).
Alarm current : 17.5mA @ 24VDC (nominal).
Product dimensions (mm) : 97.5mm diameter x 104mm deep.
Construction & finish : TBC.
IP Rating : IP65
Weight : 225g.
Operating conditions/temperature : TBC.
Key Features:
Ā
- A powerful wall-mounting open-area Sounder suitable for use with C-TECās CFP AlarmSense range of 2-8 Zone Two-Wire Fire Panels.
Ā
- IP65 rated.
Ā
- Up to 99dB(A) sound output at 1m.
Ā
- Device locking facility.
Ā
- Max. five Open-Area Alarm Devices per AlarmSense zone
