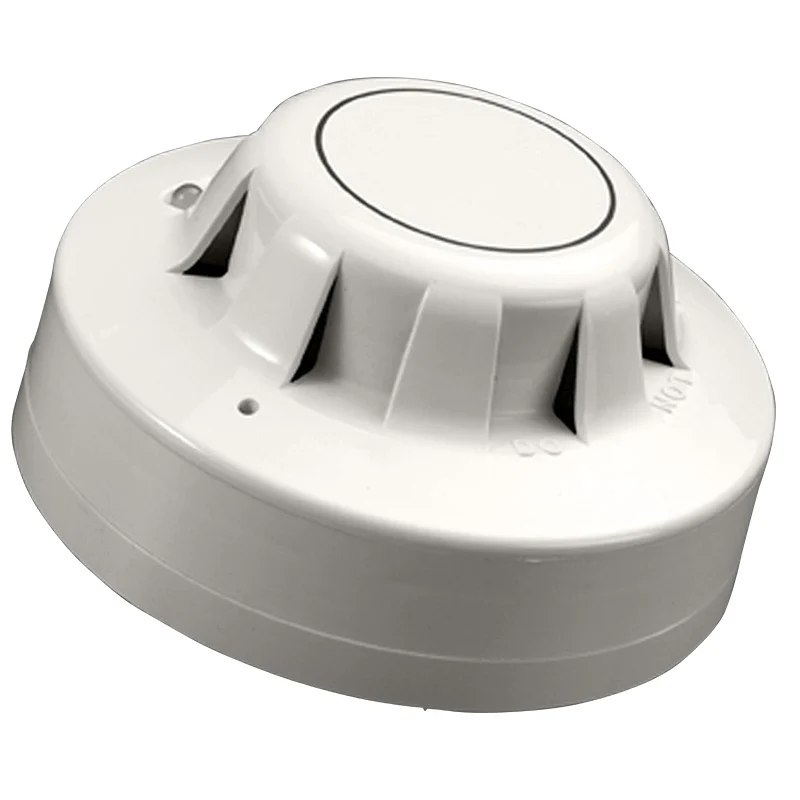

C-Tec 55000-317 Apollo Series 65 Optical Smoke Detector
Product Description
A high-quality optical smoke detector that incorporates an infrared light source and a photodiode to detect smoke particles.
Product Details
| Approvals/certifications: | Certified to EN54-7 by the LPCB. |
| Application/operation: | TBC. |
| Supply wiring: | 2-wire monitored, polarity sensitive. |
| Supply/operating voltage: | 9 to 33V DC. |
| Quiescent current: | 30-50µA @ 24 VDC. |
| Alarm voltage: | 6-28V DC. |
| Alarm current: | 61mA @ 28V DC; 52mA @ 24V DC; 18mA @ 10V DC. |
| Alarm reset voltage: | TBC. |
| Expansion connections: | Remote LED output. Current sink to negative line limited to 17mA. |
| Product dimensions (mm): | 100mm diameter x 50mm deep (detector in base); 100mm diameter x 42mm deep (detector only). |
| Construction & finish: | White polycarbonate V.O in accordance with UL94. Nickel plated stainless steel terminals. |
| IP Rating: | IP23D. |
| Weight: | 99g (detector only); 150g (detector in base). |
| Operating conditions/temperature: | -20ºC to +60ºC. |
