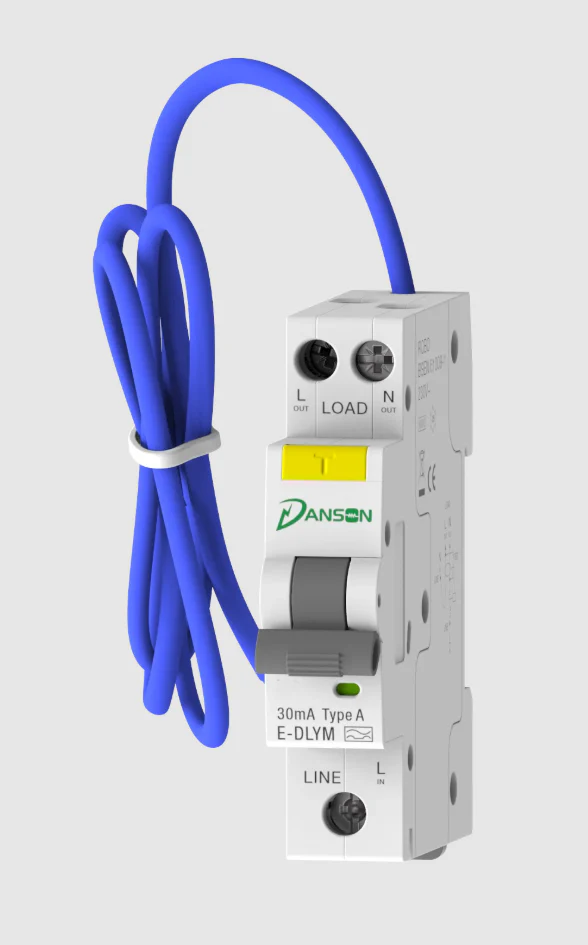

Danson E-DLYM2125 25A, Mini Single Pole 6kA RCBO, B Curve 30mA Type A (Was E-DLYC2125)

Product Details

• Standards: BS EN IEC 61009-1

• BS EN IEC 61009-2-2

• Width in number of modular spacing: 1

• Design of pole: 1P+N

• Number of protected poles: 1

• Neutral can be switched: No

• Position of neutral terminal: Right

• Trip unit technology: Thermal-magnetic

• Tripping characteristic: Type B

• Rated current In [ A ]: 25

• Residual current-detection principle Electronic: (voltage dependent)

• Type of residual current: Type A

• Residual current protection time delay: General type without time delay

• Rated residual operating current (IΔn) [ mA ]: 30
• Nature of power supply: AC

• Rated operational voltage (Ue) [ V ]: 240 (230)

• Rated frequency (f) [ Hz ]: 50/60

• Rated insulation voltage (Ui) [ V ]: 500

• Rated impulse withstand voltage (Uimp) [ kV ]: 4

• Contact position indication: Green/Red windows
