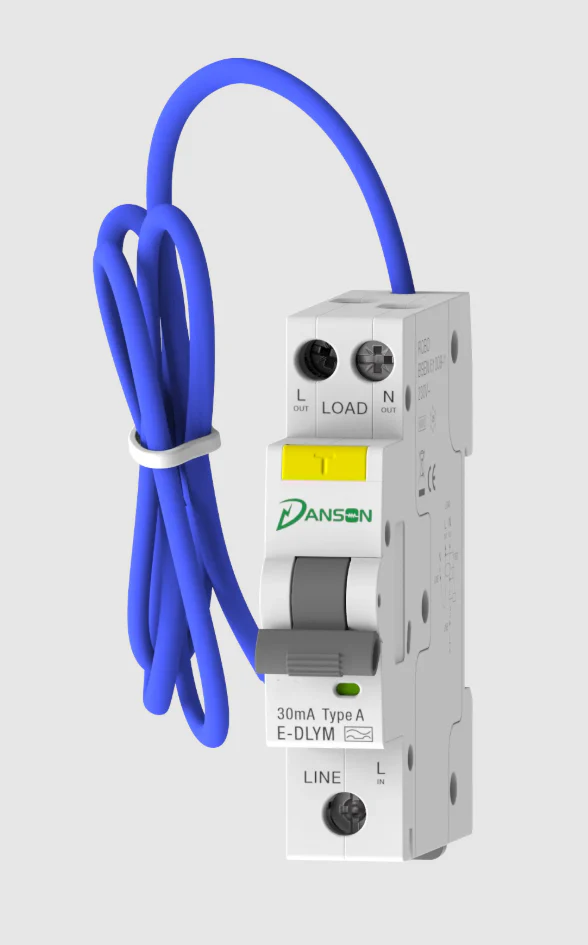

Danson E-DLYM4120 20A, Single Pole RCBO, C-Curve, 30mA, Type A (Was E-DLYC4120)

Danson E-DLYM4120 20A, Single Pole RCBO, C-Curve, 30mA, Type A (Was E-DLYC4120)

Product Details

  • Standards: BS EN IEC 61009-1
  • BS EN IEC 61009-2-2
  • Width in number of modular spacing: 1
  • Design of pole: 1P+N
  • Number of protected poles: 1
  • Neutral can be switched: No
  • Position of neutral terminal: Right
  • Trip unit technology: Thermal-magnetic
  • Tripping characteristic: Type C
  • Rated current In [ A ]: 20
  • Residual current-detection principle Electronic: (voltage dependent)
  • Type of residual current: Type A
  • Residual current protection time delay: General type without time delay
  • Rated residual operating current (IĪ”n) [ mA ]: 30
  • Nature of power supply: AC
  • Rated operational voltage (Ue) [ V ]: 240 (230)
  • Rated frequency (f) [ Hz ]: 50/60
  • Rated insulation voltage (Ui) [ V ]: 500
  • Rated impulse withstand voltage (Uimp) [ kV ]: 4
  • Contact position indication: Green/Red windows
$12.18
Danson E-DLYM4120 20A, Single Pole RCBO, C-Curve, 30mA, Type A (Was E-DLYC4120)ā€”
$12.18

Product Information

Shipping & Returns

Description

Product Details

  • Standards: BS EN IEC 61009-1
  • BS EN IEC 61009-2-2
  • Width in number of modular spacing: 1
  • Design of pole: 1P+N
  • Number of protected poles: 1
  • Neutral can be switched: No
  • Position of neutral terminal: Right
  • Trip unit technology: Thermal-magnetic
  • Tripping characteristic: Type C
  • Rated current In [ A ]: 20
  • Residual current-detection principle Electronic: (voltage dependent)
  • Type of residual current: Type A
  • Residual current protection time delay: General type without time delay
  • Rated residual operating current (IĪ”n) [ mA ]: 30
  • Nature of power supply: AC
  • Rated operational voltage (Ue) [ V ]: 240 (230)
  • Rated frequency (f) [ Hz ]: 50/60
  • Rated insulation voltage (Ui) [ V ]: 500
  • Rated impulse withstand voltage (Uimp) [ kV ]: 4
  • Contact position indication: Green/Red windows
