Eaton 100KXTNC2F 100A, TP+N Exel 2 Switch Disconnector Fuse (HRC)

Product Description



• Units have removable moving contact assemblies to facilitate wiring.

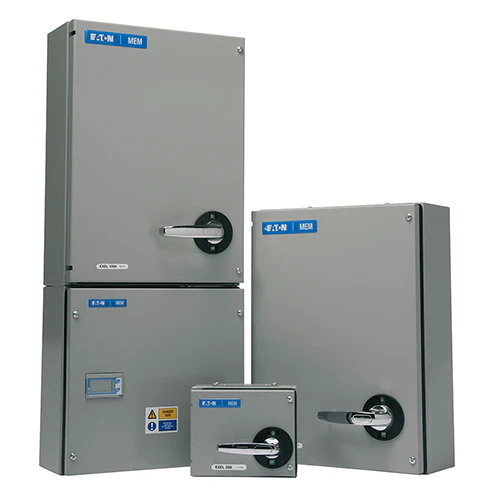

• Exel 2 surface-mounting enclosures are fabricated from rust-protected sheet steel with a light grey paint finish.



• Removable blank top and bottom end plates and gasket doors give IP41 protection.



• Chromium-plated front operated handles, with “ON (I) OFF (O)” indication, and internal fixing enabling units to be mounted closely side by side.



• Interiors comprise porcelain bases fitted with non-ferrous conducting components.





Product Details



• Nominal Rating: 100A



• Utilisation category at Ue 415V to BS EN 60947-3 (AC22A): 52A



• Poles: Three poles + Neutral



• Standards: BS EN 60947-3



• Maximum Cable Size: 70mm²



• Eaton HRC Fuses DC23: CEO100
