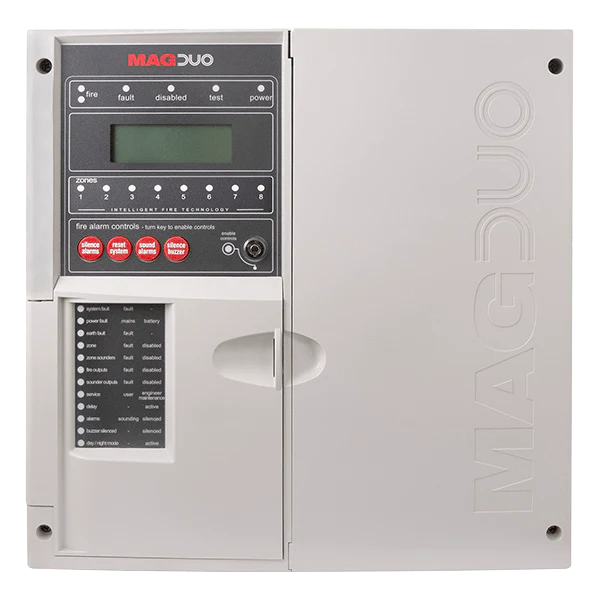

ESP MAGDUO8 8 Zone 2-Wire Fire Alarm Panel

ESP MAGDUO8 8 Zone 2-Wire Fire Alarm Panel

  • Dimensions (mm) : 331 x 331 x 99
  • Materials : V0 rated ABS
  • Maximum Detectors Per Zone : Up to 32 Devices (Dependant on Device Loading Units , 160 per Zone)
  • Sounders and Detectors Mixed on Zones : Yes
  • Maximum Cable Length Per Zone (m) : 500
  • Weight (Kg) : 2.36
  • Supply Voltage (V AC) : 230 (Nominal 700mA)
  • Operating Voltage (V DC) : 21 -31
  • Nominal Operating Voltage (V DC) : 24
  • Nominal Operating Current (mA) : 700
  • Maximum Cable Size (mm²) : 1.5 (2 Core Screened Fire Rated Cable)
  • PSU Output (4 Hour Continuous)(A) : 2.1
  • Ingress Protection : IP30
  • Operating Temperature (°C) : +5 to +40
Select Include batteries:
From $428.59
ESP MAGDUO8 8 Zone 2-Wire Fire Alarm Panel—
$428.59

Product Information

Shipping & Returns

Description

  • Dimensions (mm) : 331 x 331 x 99
  • Materials : V0 rated ABS
  • Maximum Detectors Per Zone : Up to 32 Devices (Dependant on Device Loading Units , 160 per Zone)
  • Sounders and Detectors Mixed on Zones : Yes
  • Maximum Cable Length Per Zone (m) : 500
  • Weight (Kg) : 2.36
  • Supply Voltage (V AC) : 230 (Nominal 700mA)
  • Operating Voltage (V DC) : 21 -31
  • Nominal Operating Voltage (V DC) : 24
  • Nominal Operating Current (mA) : 700
  • Maximum Cable Size (mm²) : 1.5 (2 Core Screened Fire Rated Cable)
  • PSU Output (4 Hour Continuous)(A) : 2.1
  • Ingress Protection : IP30
  • Operating Temperature (°C) : +5 to +40
