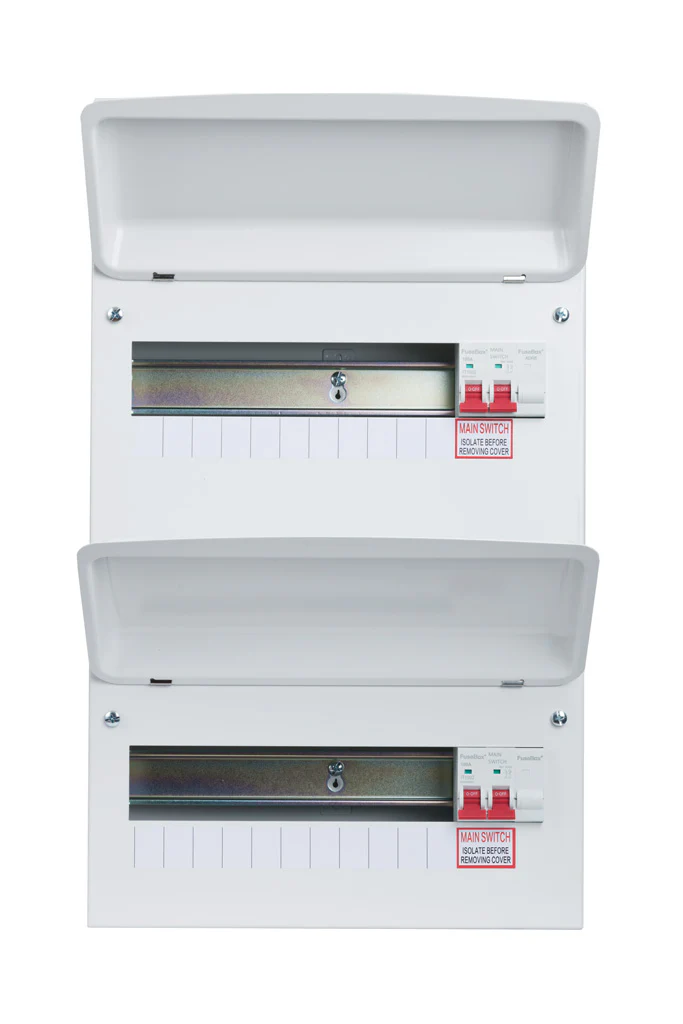

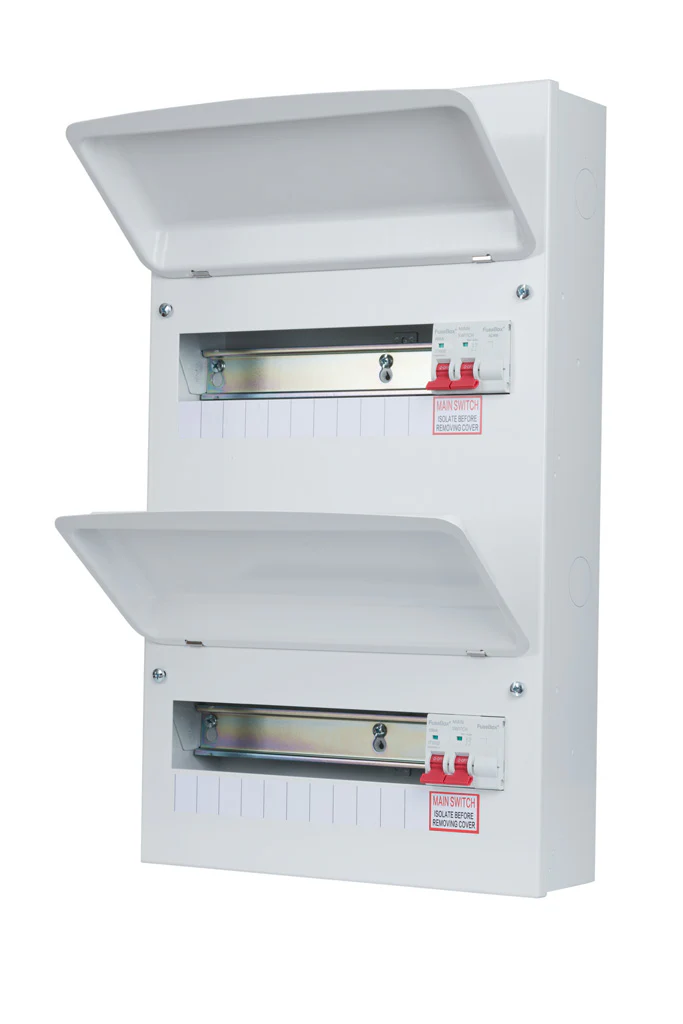

Fusebox F2020MDT 20 Way Consumer Unit (10-10) 2 x 100A Main Switch (Now F3024MDT)
Product Details
| STANDARD | EN 61439-3 |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| PROTECTION DEGREE (IP) | 2XC |
| MAXIMUM TERMINAL BAR CAPACITY | 16mm Ā² |
| TERMINAL BAR TIGHTENING TORQUE (Nm) | 2 |
| DEVICE MOUNTING | 35mm DIN RAIL |
| MATERIAL | 1mm ELECTRO GALVANISED STEEL (ZINC) |
| FINISH | RAL 9001 POWDER COATED SMOOTH FINISH |
| KNOCKOUTS | SELECTION 20mm - 40mm |
| ACCESSORY PACK | CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
| NUMBER OF USABLE WAYS | 20 |
| SPLIT | 10/10 |
| PART NUMBER | F2020MDT |
| GTIN-13 | 5060523524341 |
| MAIN SWITCH RATING (AC22A) | 100A |
| WEIGHT (1PC) Kg | 7.9 |
| DIMENSIONS (HxWxD)mm | 512x306X113 |
| DOUBLE BANK | Y |
| TAIL CLAMP COMPATIBLE (ACCF) | Y |
$52.05
Original: $148.72
-65%Fusebox F2020MDT 20 Way Consumer Unit (10-10) 2 x 100A Main Switch (Now F3024MDT)ā
$148.72
$52.05Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Details
| STANDARD | EN 61439-3 |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| PROTECTION DEGREE (IP) | 2XC |
| MAXIMUM TERMINAL BAR CAPACITY | 16mm Ā² |
| TERMINAL BAR TIGHTENING TORQUE (Nm) | 2 |
| DEVICE MOUNTING | 35mm DIN RAIL |
| MATERIAL | 1mm ELECTRO GALVANISED STEEL (ZINC) |
| FINISH | RAL 9001 POWDER COATED SMOOTH FINISH |
| KNOCKOUTS | SELECTION 20mm - 40mm |
| ACCESSORY PACK | CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
| NUMBER OF USABLE WAYS | 20 |
| SPLIT | 10/10 |
| PART NUMBER | F2020MDT |
| GTIN-13 | 5060523524341 |
| MAIN SWITCH RATING (AC22A) | 100A |
| WEIGHT (1PC) Kg | 7.9 |
| DIMENSIONS (HxWxD)mm | 512x306X113 |
| DOUBLE BANK | Y |
| TAIL CLAMP COMPATIBLE (ACCF) | Y |
