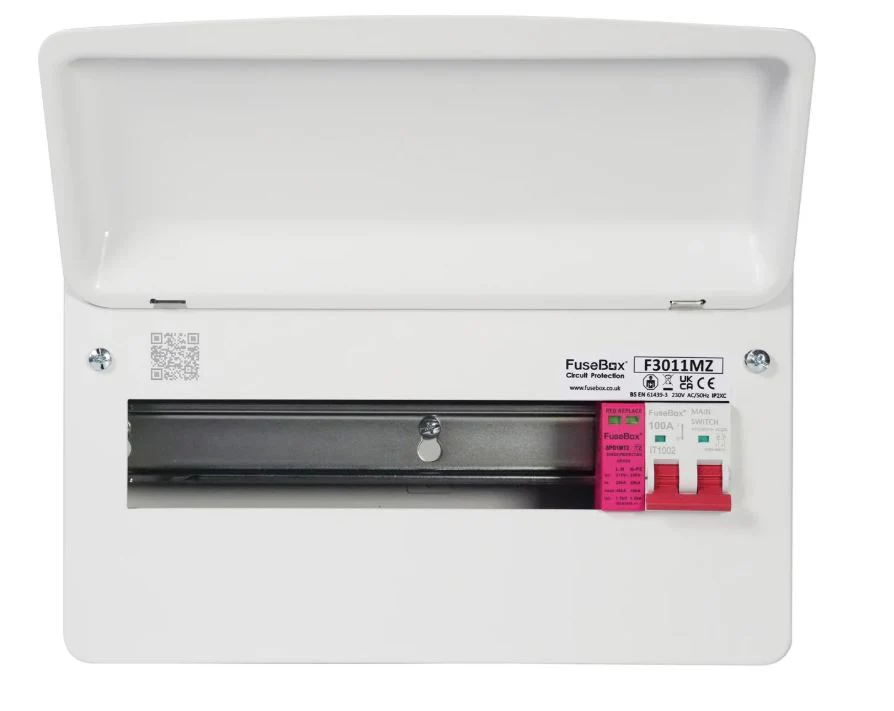

Fusebox F3011MZ 11-way Consumer Unit with 100A Isolator + T2 SPD (Replacement of F2010MX)
SPECIFY RCBOS SIZE IN THE BOX ABOVE
Product DetailsĀ
| STANDARD | EN 61439-3 |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| PROTECTION DEGREE (IP) | 2XC |
| MAXIMUM TERMINAL BAR CAPACITY | 16mm Ā² |
| TERMINAL BAR TIGHTENING TORQUE (Nm) | 2 |
| DEVICE MOUNTING | 35mm DIN RAIL |
| MATERIAL | 1mm ELECTRO GALVANISED STEEL (ZINC) |
| FINISH | RAL 9001 POWDER COATED SMOOTH FINISH |
| KNOCKOUTS | SELECTION 20mm - 40mm |
| ACCESSORY PACK | CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
| WEIGHT (1PC) | 4kg |
| DIMENSIONS (HxWxD)mm | 259x306x113 |
| DOUBLE BANK | N |
| TAIL CLAMP INCLUDED (ACCF) | Y |
Select Add RCBO's (Type A, B Curve)
From $27.21
Original: $77.74
-65%Fusebox F3011MZ 11-way Consumer Unit with 100A Isolator + T2 SPD (Replacement of F2010MX)ā
$77.74
$27.21Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
SPECIFY RCBOS SIZE IN THE BOX ABOVE
Product DetailsĀ
| STANDARD | EN 61439-3 |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| PROTECTION DEGREE (IP) | 2XC |
| MAXIMUM TERMINAL BAR CAPACITY | 16mm Ā² |
| TERMINAL BAR TIGHTENING TORQUE (Nm) | 2 |
| DEVICE MOUNTING | 35mm DIN RAIL |
| MATERIAL | 1mm ELECTRO GALVANISED STEEL (ZINC) |
| FINISH | RAL 9001 POWDER COATED SMOOTH FINISH |
| KNOCKOUTS | SELECTION 20mm - 40mm |
| ACCESSORY PACK | CIRCUIT IDENTIFICATION LABELS / GROMMET STRIP |
| WEIGHT (1PC) | 4kg |
| DIMENSIONS (HxWxD)mm | 259x306x113 |
| DOUBLE BANK | N |
| TAIL CLAMP INCLUDED (ACCF) | Y |
