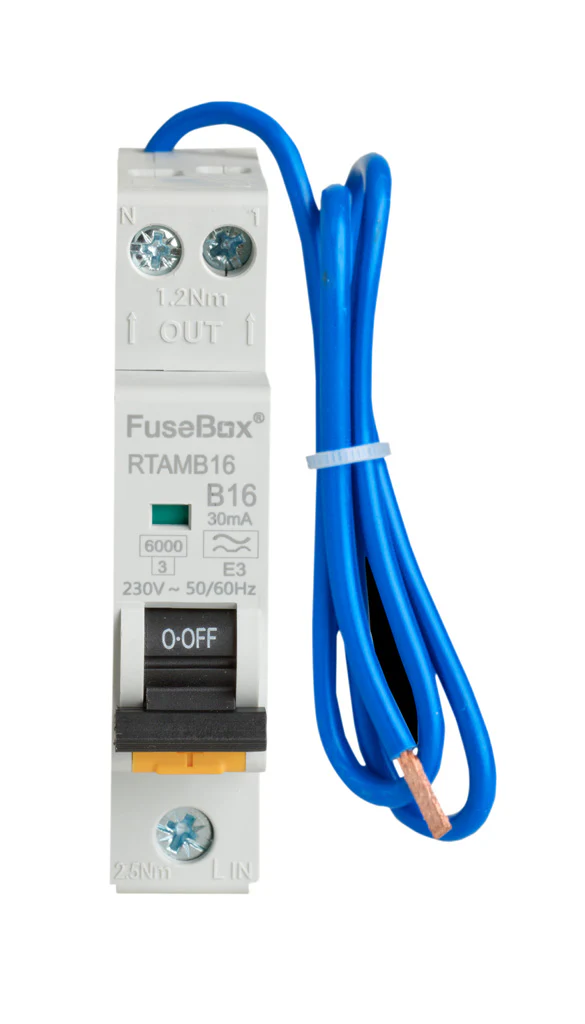

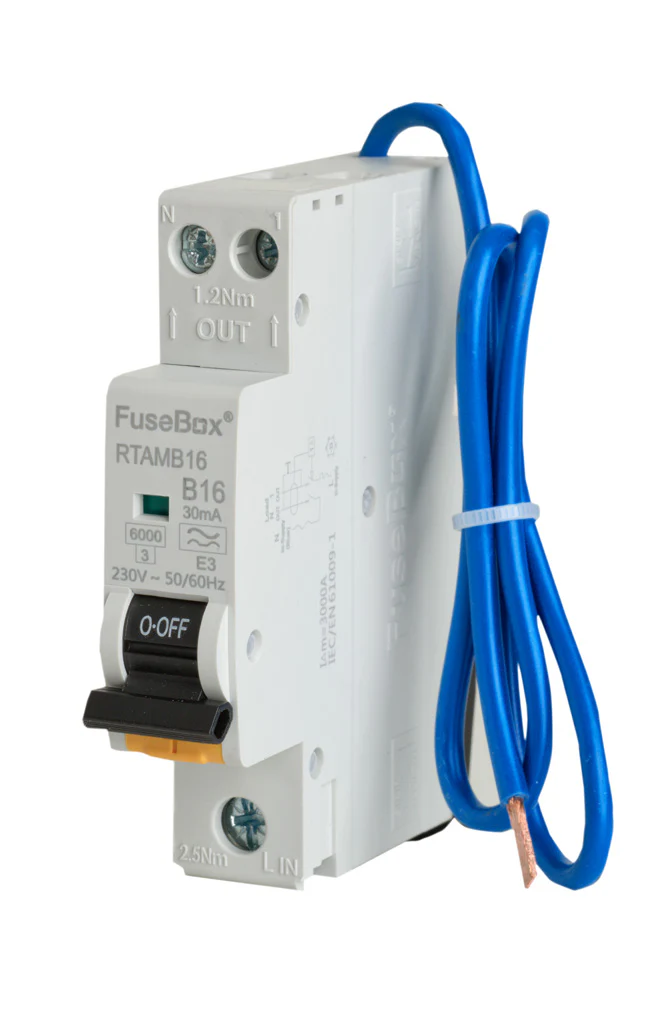

Fusebox RTAMB16 16A Mini-RCBO 6kA 2 pole (B Curve) Type A (Now RTAMB16BD)
Product Details
Replaced by the new Bi-directional RCBO (seeĀ here)
Ā
| RATED RESIDUAL OPERATING CURRENT (IĆān) | 30mA |
| STANDARD | IEC 61009-1, IEC 61009-2-2 |
| NUMBER OF POLES | 1P + N (Switched) |
| RATED VOLTAGE (Un/AC) | 230V |
| FREQUENCY (Hz) | 50/60 |
| RATED BREAKING CAPACITY (Icn) | 6000A (6kA) |
| RATED CURRENT (In) | 16 |
| TRIPPING CHARACTERISTICS | B Curve: 3-5In |
| RESIDUAL CURRENT CHARACTERISTICS | TYPE A (AC and Pulsating DC UP TO 6mA) |
| RATED RESIDUAL OPERATING CURRENT (IĆān) | 0.03 |
| MECHANICAL ENDURANCE | 10,000 |
| PROTECTION DEGREE (IP) | 20 |
| MAXIMUM TERMINAL CAPACITY | 1-16mm Ā² IN L/ 1-10mm Ā² OUT N L |
| RECOMMENDED TIGHTENING TORQUE (Nm) | 2.5Nm IN L/ 1.2Nm OUT N L |
| FLYING NEUTRAL CABLE LENGTH (mm) | 450mm (Can be cut to suit) |
| MOUNTING | 35mm din rail |
| MATERIAL | PA6 (Nylon 6) |
| WEIGHT (1PC) Kg | 0.144 |
