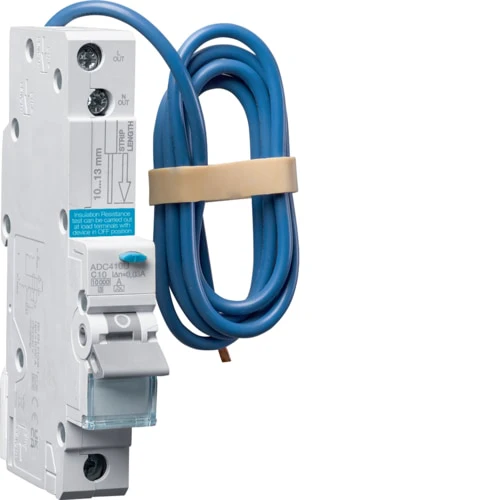

Hager ADC410U (direct replacement of ADA160U) 10A, 1-Pole, 10kA C-Curve, Type A RCBO

Product Details





• Neutral position: right



• Number of poles: 1P



• Fixing mode: DIN rail type O (symmetrical)



• Curve: C



• Rated operational voltage Ue: 230/240 V



• Frequency: 50/60 Hz



• Rated current: 10A



• Type of supply voltage: AC



• Rated insulation voltage: 250 V



• Max operating voltage: 253 V



• Rated impulse withstand voltage: 4000 V



• Rated residual operating current: 30 mA



• Breaking and opening capacity: 10 kA



• Dimensions (HxWxD): 115 x 17.8 x 70 mm



• Total power loss under IN: 2.8 W



• Electric endurance in number of cycles: 2000



• Number of mechanical operations: 10000



• Standard text
  • BS 61009-1, EN 61009-1



• Protection index: IP IP20



• Residual current type: A



• Operating temperature: -25…40 °C
