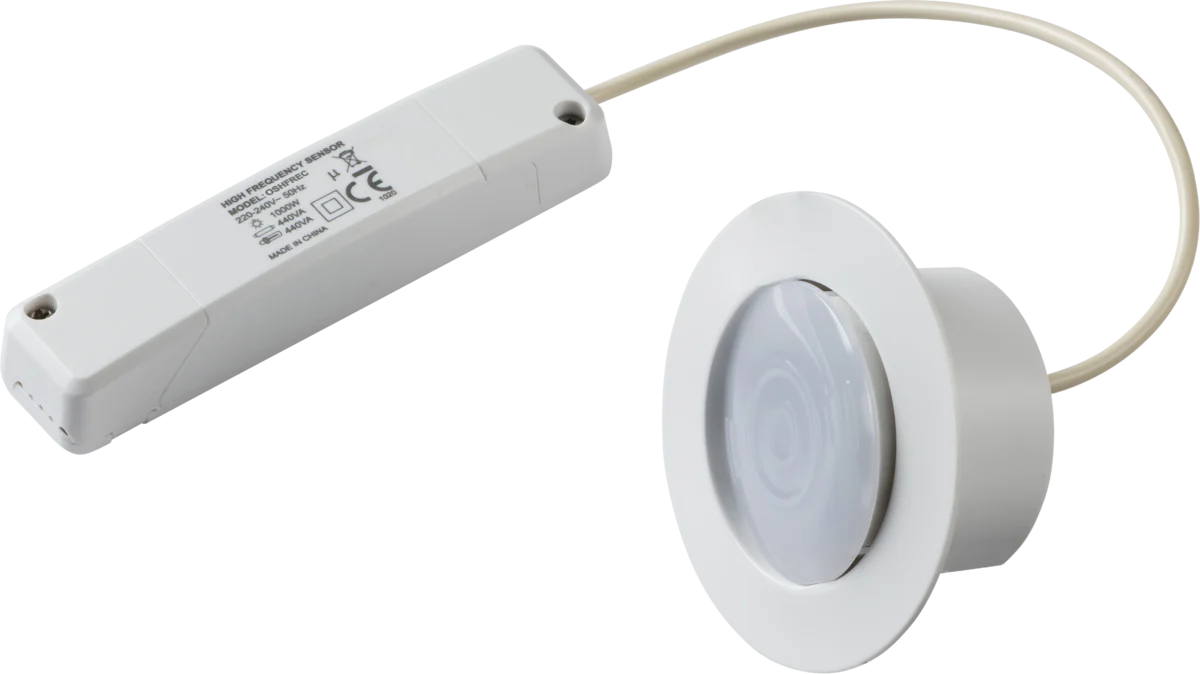

Knightsbridge MLA OSHFREC 230V Recess Mount HF Motion Sensor

Recess mounting HF sensor

• 5.8GHz High Frequency sensor
• 230V ~ 50Hz
• Max Load: 1000W Incandescent / 100W LED
• Detection angle: 360
• Detection Range: 3m diameter @ 3m install height
• Time setting: 30s - 30min
• Lux setting: 5-1000 lux
• Sensitivity setting: 1m - 3m
• Operating Temperature: 0 - 45
• Internal Use only (IP20)
• Operational Modes: Auto / Short Pulse / Test / Manual Override
• Require cut out of: 62mm



Technical Details

NET WEIGHT (KG)	0.13
FINISH	White
DIMENSIONS (MM)	Diameter - 90 Length - 90 Height - 41 Width - 90 Projection - 6 Recessed Depth - 35
CUT-OUT (MM)	Cut-out Diameter - 62
CONSTRUCTION	Construction - Polycarbonate
CLASS	II
IP RATING	IP20
INPUT VOLTAGE	230V 50Hz
SENSOR TYPE	Microwave
SENSOR OVERRIDE	Yes
SENSOR DETECTION ANGLE (DEGREES)	360
OPTIMUM DETECTION RANGE (M)	up to 3m
SENSOR DURATION	30s/1min/5min/ 10min/30min
SENSOR LUX SETTINGS	5-1000 lux
WARRANTY	2year(s)
