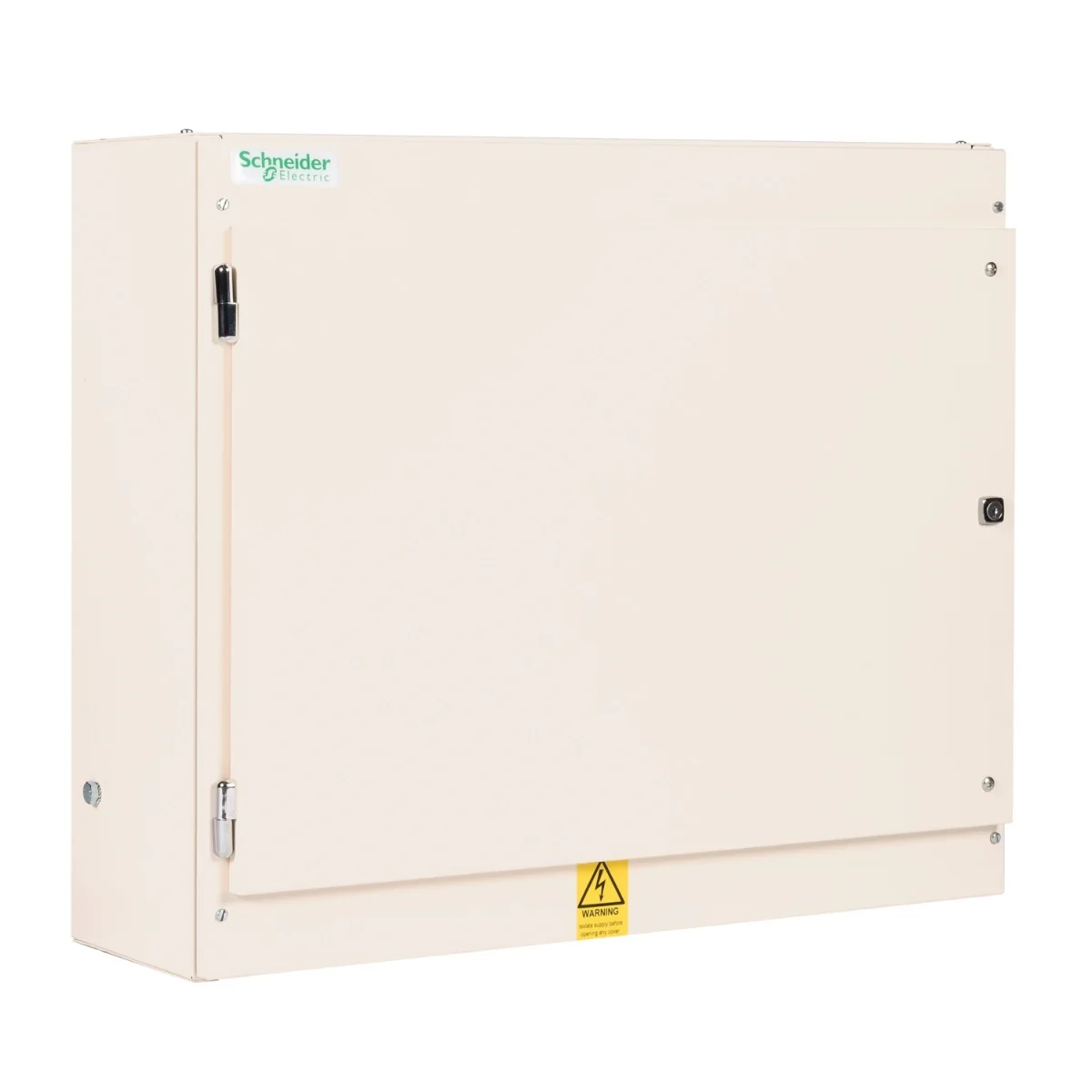

Schneider Merlin Gerin MG25C2 Powerpact 4 - 13 SP Ways, 250A Panelboard
Product Details
-
provided equipment:
- Removable bottom gland plate
- end cover
- [In] rated current: 250 A
-
number of ways:
- 13 ways (1P)
- 3 ways (3P)
- [Ue] rated operational voltage: 415 V 50 Hz AC
- breaking capacity: 36 kA AC 1 s
- enclosure material: Epoxy-polyester powder steel
- thickness: Cover: 1.2 mm
- Enclosure: 1.6 mm
- cable entry: Bottom at main
- device mounting: Wall mounted
-
Dimensions:
- height:650 mm
- width: 600 mm
- depth: 268 mm
- horizontal fixing centres: 306 mm
- vertical fixing centres: 442 mm
- IP degree of protection: IP3x
