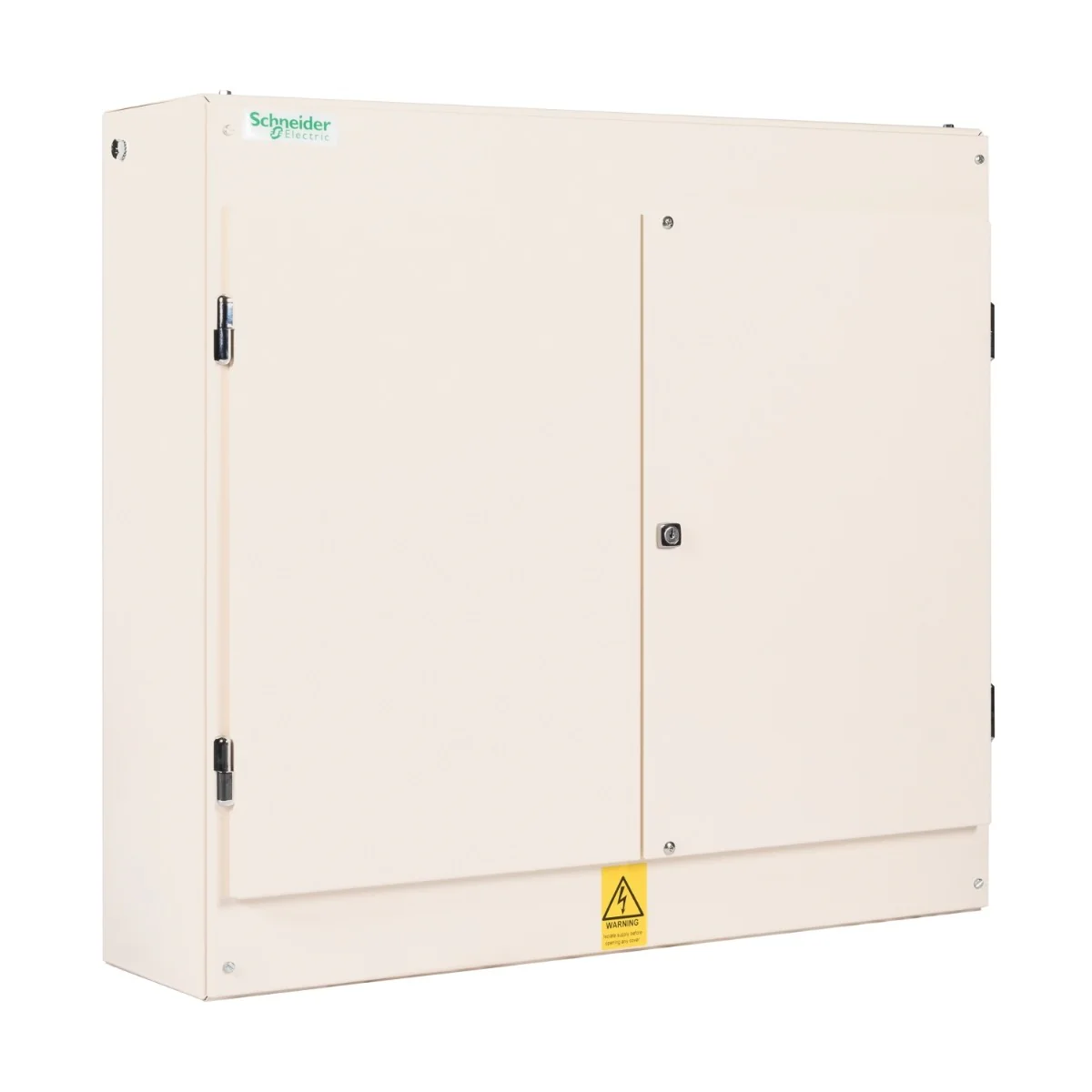

Schneider Merlin Gerin MG2C9 Powerpact 4 - 27 SP Ways, 250A Panelboard
THIS ITEM WILL BE SHIPPED ON A PALLET TO AVOID DAMAGE IN-TRANSIT
Product Details
-
provided equipment:
- Removable bottom gland plate
- end cover
- [In] rated current: 250 A
-
number of ways:
- 27 ways (1P)
- 9 ways (3P)
- [Ue] rated operational voltage: 415 V 50 Hz AC
- breaking capacity: 36 kA AC 1 s
- enclosure material: Epoxy-polyester powder steel
- thickness: Cover: 1.2 mm
- Enclosure: 1.6 mm
- cable entry: Bottom at main
- device mounting: Wall mounted
-
Dimensions:
- height: 889 mm
- width: 850 mm
- depth: 260 mm
- horizontal fixing centres: 670 mm
- vertical fixing centres: 751 mm
- IP degree of protection: IP3x
$465.94
Original: $1,331.26
-65%Schneider Merlin Gerin MG2C9 Powerpact 4 - 27 SP Ways, 250A Panelboard—
$1,331.26
$465.94Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
THIS ITEM WILL BE SHIPPED ON A PALLET TO AVOID DAMAGE IN-TRANSIT
Product Details
-
provided equipment:
- Removable bottom gland plate
- end cover
- [In] rated current: 250 A
-
number of ways:
- 27 ways (1P)
- 9 ways (3P)
- [Ue] rated operational voltage: 415 V 50 Hz AC
- breaking capacity: 36 kA AC 1 s
- enclosure material: Epoxy-polyester powder steel
- thickness: Cover: 1.2 mm
- Enclosure: 1.6 mm
- cable entry: Bottom at main
- device mounting: Wall mounted
-
Dimensions:
- height: 889 mm
- width: 850 mm
- depth: 260 mm
- horizontal fixing centres: 670 mm
- vertical fixing centres: 751 mm
- IP degree of protection: IP3x
