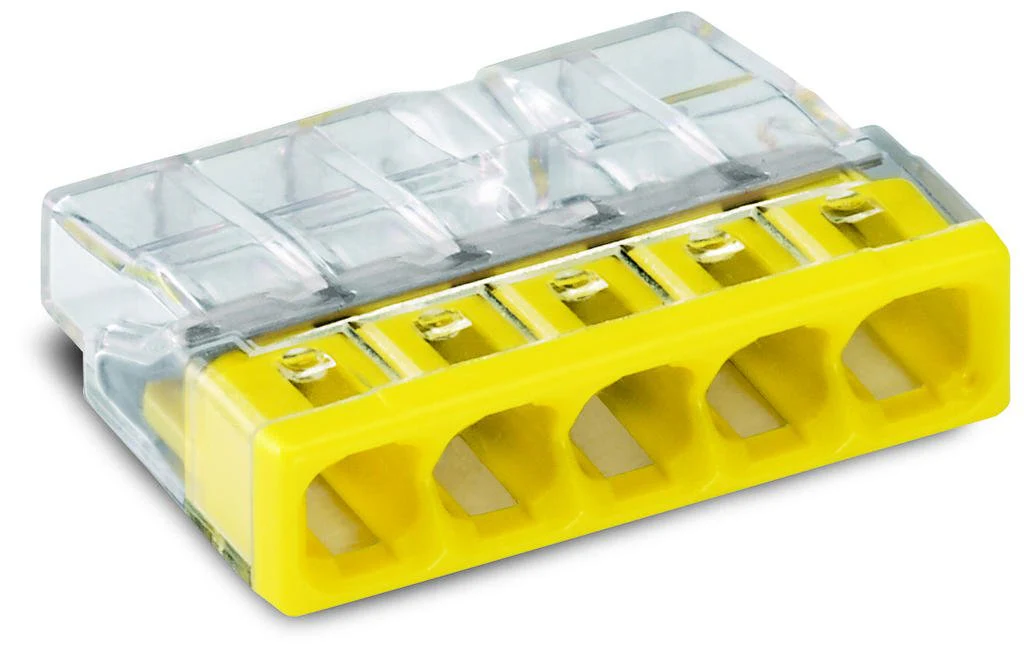

Wago Connector 5-Wire 0.5-2.5mm Connector (2273 - 205) - Box of 100

Product Details



• Ratings per: IEC/EN 60998



• Nominal voltage: (II/2) 450 V



• Rated surge voltage: (II/2) 4 kV



• Rated current: 24 A



• Legend (ratings): (II / 2) ≙ Overvoltage category II / Pollution degree 2



• Approvals per: UL 486C



• Bemessungsspannung: UL 600 V



• Bemessungsstrom: UL 20 A



• Connection technology: PUSH WIRE®



• Actuation type: Push-in



• Connectable conductor materials: Copper, Aluminum



• Solid conductor: 0.5 … 2.5 mm² / 20 … 16 AWG



• Strip length: 11 mm / 0.43 inch

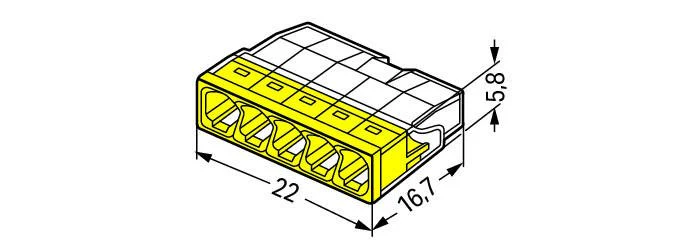

• Dimensions:
  • Width: 22 mm / 0.866 inch
  • Height: 5.8 mm / 0.228 inch
  • Depth: 16.7 mm / 0.657 inch



• Color: yellow



• Cover color: yellow



• Flammability class per UL94: V2



• Fire load: 0.03 MJ



• Weight: 1.6 g
