Warmup SPM7 7M² StickyMat Underfloor Heater
Product Description

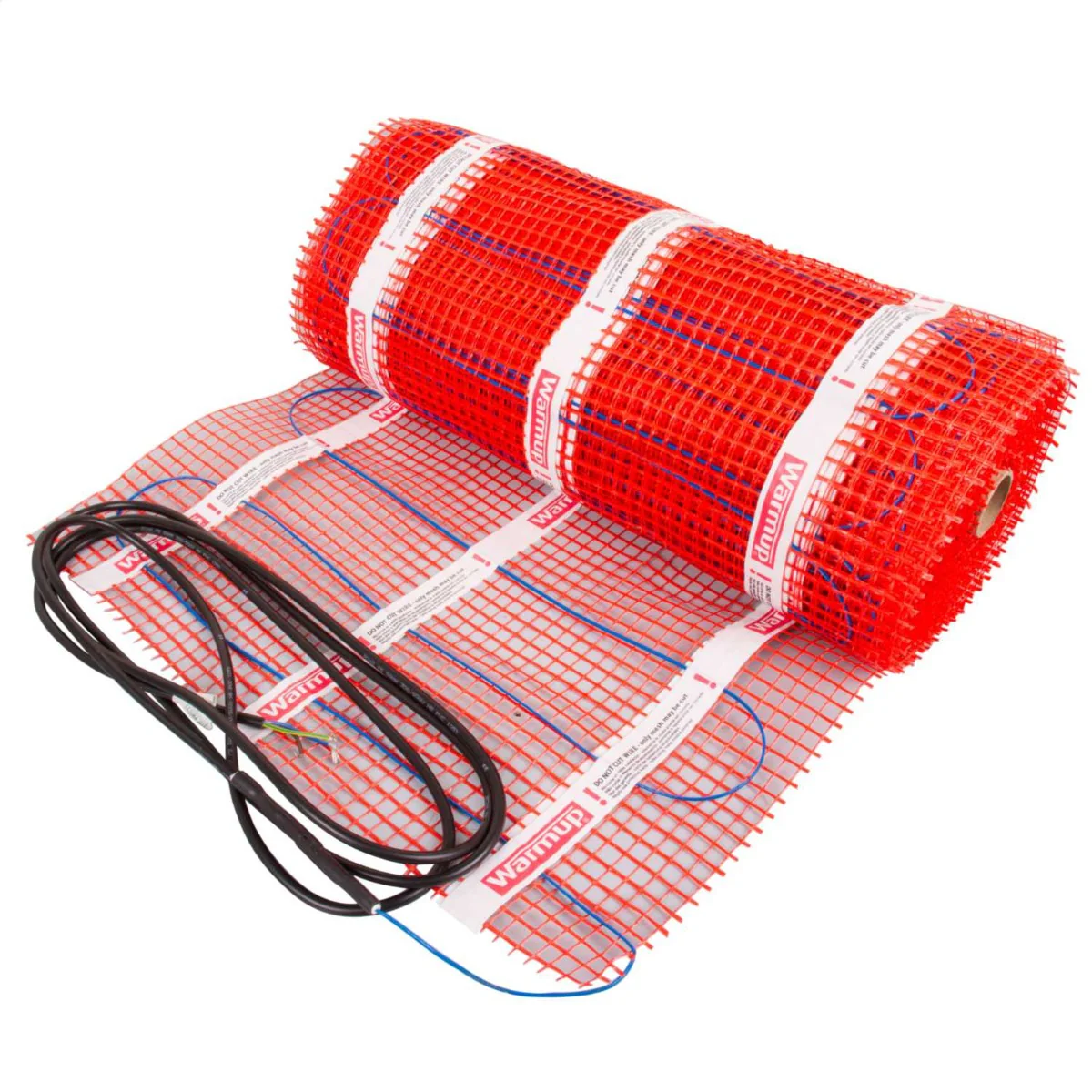

The Warmup StickyMat System is designed for use within the adhesive layer under tiles or within a levelling compound under other floor finishes. The fixed spacing and self-adhesive mat makes installation of regularly shaped rooms quick and easy whilst ensuring precision is maintained. The pressure sensitive adhesive securely binds the mats to the floor, keeping them flat and ensuring the
application of tile adhesive is snag free whilst allowing the mats to be easily repositioned as needed.
The ultra-thin, 2mm multistrand, dual core heating cable, is double insulated with an advanced fluoropolymer making it exceptionally tough and easy to tile over.
For floors using a vinyl, carpet, timber or other UFH compatible floor finishes including tiles the system can be covered with a levelling compound to provide a flat and level floor surface. 150W/m² StickyMat is ideal for use as the primary heat source within modern homes and most older properties.
Product Details
| Operating Voltage: | 220 - 240v: 50Hz |
| IP Rating: | IPX7 |
| Width: | 500mm |
| Mat Thickness: | 3mm |
| Cable Thickness: | 1.8mm |
| Output Rating: | 150W/M² |
| Inner Insulation: | ETFE |
| Outer Insulation: | ETFE |
| Min. Installation Temp: | 5°C |
| Connection: | 3m long “Coldtail” |
| Area to be heated: | 7m² |
| Power (w): | 1050 |
| Load (A): | 4.57 |
| Resistance (O): | 50 |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Product Description
The Warmup StickyMat System is designed for use within the adhesive layer under tiles or within a levelling compound under other floor finishes. The fixed spacing and self-adhesive mat makes installation of regularly shaped rooms quick and easy whilst ensuring precision is maintained. The pressure sensitive adhesive securely binds the mats to the floor, keeping them flat and ensuring the
application of tile adhesive is snag free whilst allowing the mats to be easily repositioned as needed.
The ultra-thin, 2mm multistrand, dual core heating cable, is double insulated with an advanced fluoropolymer making it exceptionally tough and easy to tile over.
For floors using a vinyl, carpet, timber or other UFH compatible floor finishes including tiles the system can be covered with a levelling compound to provide a flat and level floor surface. 150W/m² StickyMat is ideal for use as the primary heat source within modern homes and most older properties.
Product Details
| Operating Voltage: | 220 - 240v: 50Hz |
| IP Rating: | IPX7 |
| Width: | 500mm |
| Mat Thickness: | 3mm |
| Cable Thickness: | 1.8mm |
| Output Rating: | 150W/M² |
| Inner Insulation: | ETFE |
| Outer Insulation: | ETFE |
| Min. Installation Temp: | 5°C |
| Connection: | 3m long “Coldtail” |
| Area to be heated: | 7m² |
| Power (w): | 1050 |
| Load (A): | 4.57 |
| Resistance (O): | 50 |
