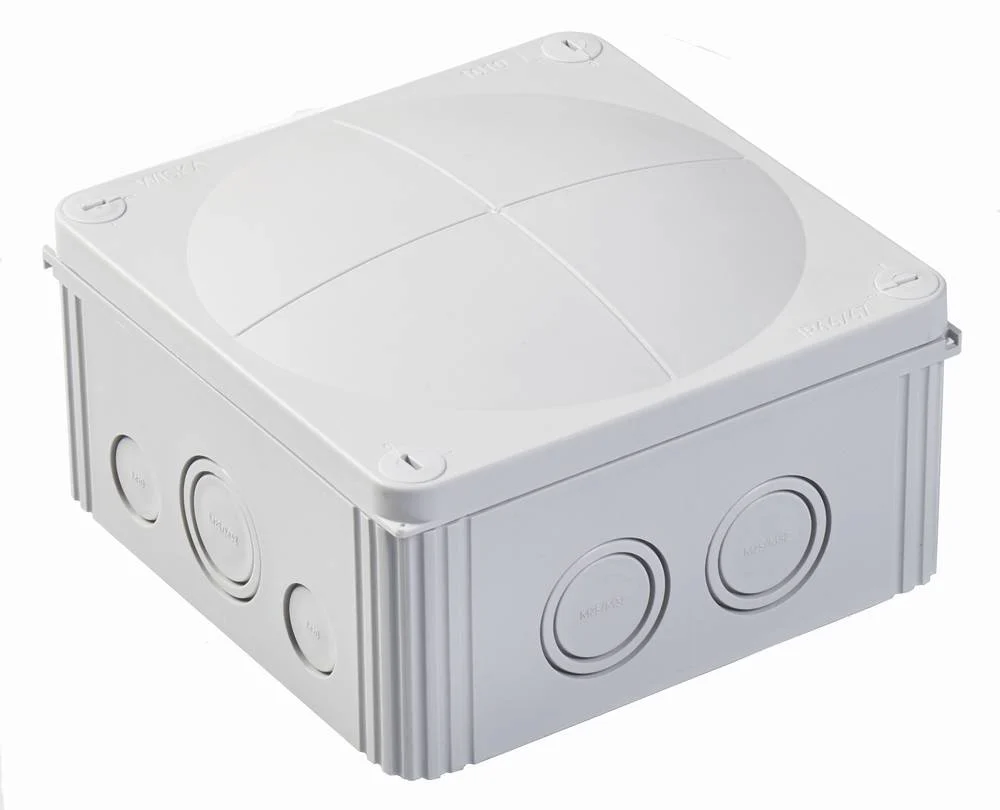

Wiska 10062210 COMBI 1010 Empty Junction Box

Product Description



COMBI® junction box made of flame-retardant, halogen-free, reinforced thermoplastic, in 2-component plastic technology combined with push-through diaphragms made of thermoplastic elastomer.

The box with a high degree of protection is weather and UV resistant as well as impact resistant and unbreakable. Ideally suited for extreme loads or installation indoors and outdoors.



Technical Details

• Dimensions: 140 x 140 x 82mm




• Protection: IP66/67



• Rated Voltage: 690V



• Amperage: 57A



• Terminals: 10mm²




• Fixing: 4 internal openings




• Rated Cross-section: 10mm²




• Material: Polypropylene, Gasket: TPE



• Cable Entry: 10 knockouts side 5x M25/M32; 2x M20; 3x M20/M32
