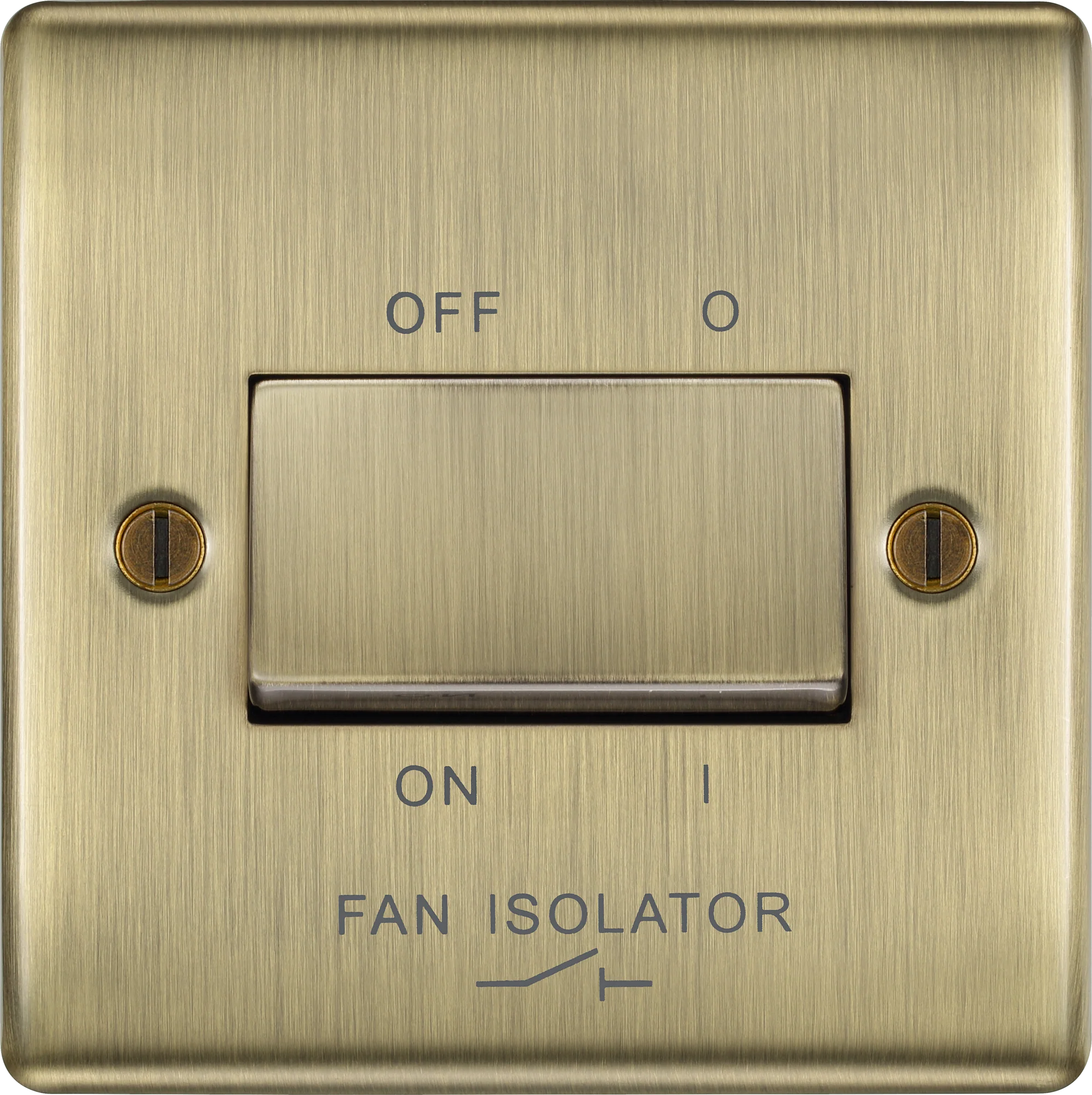

BG NAB15 Nexus Metal Antique Brass Triple pole fan isolator

Restock expected by 12/17/2025.

• 10A Rated
• Easy to install, supplied with fixing screws and installation instructions
• Triple pole switching design however can be used for double pole applications if required
• Captive, backed out terminal screws for fast installation and to prevent screw loss
• Sleek and slim premium metal with softly rounded edges
• No visible plastic around switch
• Moisture control gasket, prevents tarnishing from new plaster
• Minimum mounting box depth 25mm
• Certified to BS60669-1
• General Colour: Antique Brass
• Captive Terminal Screws: Yes
• Backed-out Terminal Screws: Yes
• Minimum Box Depth (mm): 25
• Terminal Capacity (mm²): 4 x 1.0mm², 4 x 2.5mm², 2 x 2.5mm², 1 x 4mm²
• Fixing Screws Supplied: Yes
• Terminals with Colour Coding Print: No
• Number of Switches: 1
• Screw Caps: No
• Switch Style Type: Rocker
• Switch Type (Ways & Poles): 3 Pole
• Switch Location Position: Wall
• Fixing Centres (mm): W-60.3
• IP Rating: IP20
• Operating Voltage (V): 220-240
• Switch State : On/Off
• Height (mm) : 86
• Width (mm) : 86
• Depth (mm) : 23
